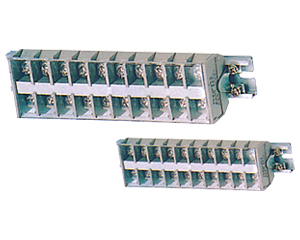

ENJH9系列組合型接線端子
| 概述 材料采用聚碳酸酯阻燃型，額定工作電壓交流660V，壓接技術采用片裝組合螺釘壓接技術，連接導線截面 0.75～35mm2 。導軌安裝采用 25mm的C型導軌。 |
|
|
|
|
| 技術參數(shù): |
| 型號 規(guī)格 |
外形尺寸mm | 連接導線 范圍 mm2 |
額定 電流A |
接線 螺釘 |
配用端頭 | |||
| B |
H | 厚 | 外形圖 | |||||
| JH9-1.5 | 32 | 31.5 | 8 | 1 | 0.75-1.0-1.5 | 17.5 | M3 | TU1-1/3, 1.5/3, TO1-1/3, 1.5/3 |
| JH9-1.5ZG | 32.5 | 2 | 2 | |||||
| JH9-2.5 | 40 | 33.5 | 11 | 1 | 1.0-1.5-2.5 | 24 | M4 | TU1-1/4, TO1-1/4 TU1-1.5/4, TO1-1.5/4 TU1-2.5/4, TO1-2.5/4 |
| JH9-2.5Z | 35 | 12 | 3 | |||||
| JH9-2.5ZG | 33.5 | 2 | 4 | |||||
| JH9-6 | 43 | 36.5 | 14 | 1 | 2.5-4-6 | 41 | M5 | TU1-2.5/5, TO1-2.5/5 TU1-4/5, TO1-4/5 TU1-6/4, TO1-6/4 |
| JH9-6Z |
38 | 15 | 3 | |||||
| JH9-6ZG | 36.5 | 2 | 4 | |||||
| JH9-10 | 50 | 38.5 | 16.5 | 1 | 4-6-10 | 57 | M6 | TO1-4/6, TO1-6/6,TO1-10/6 |
| JH9-10Z | 40 | 17.5 | 3 | |||||
| JH9-10ZG | 38.5 | 2 | 4 | 10-16-25 | 101 | M6 | TO1-10/6, TO1-16/6, TO1-25/6 | |
| JH9-25 | 60 | 41.5 | 18.5 | 1 | ||||
| JH9-25Z | 43 | 19.5 | 3 | |||||
| JH9-25ZG | 41.5 | 2 | 4 | |||||
